Cubical multifiltrations

This family of filtrations is well suited for “multicolor” images.

import multipers as mp
from multipers.data.synthetic import three_annulus
import matplotlib.pyplot as plt
from multipers.ml.convolutions import KDE
import numpy as np
import gudhi as gd

[KeOps] Warning : Cuda libraries were not detected on the system or could not be loaded ; using cpu only mode

We start from a large point cloud

np.random.seed(0)
X = three_annulus(50_000,50_000)
X /= 4
X+=.5

This point cloud is too large to be quickly dealt with, so we consider its density (estimation) on a small grid

resolution = [200,200]
grid = mp.grids.todense([np.linspace(0,1,r) for r in resolution])
density = KDE(bandwidth=.04, return_log=True).fit(X).score_samples(grid).reshape(resolution)

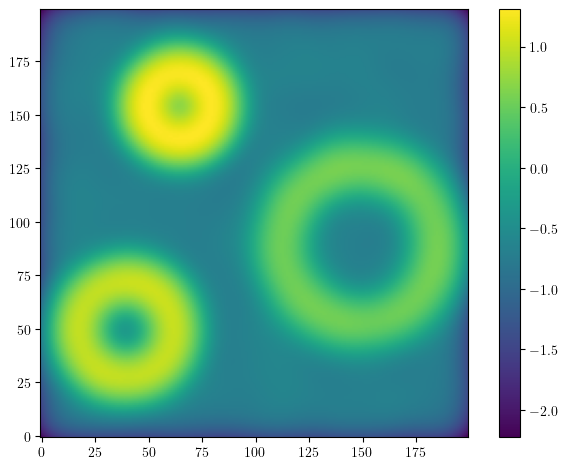

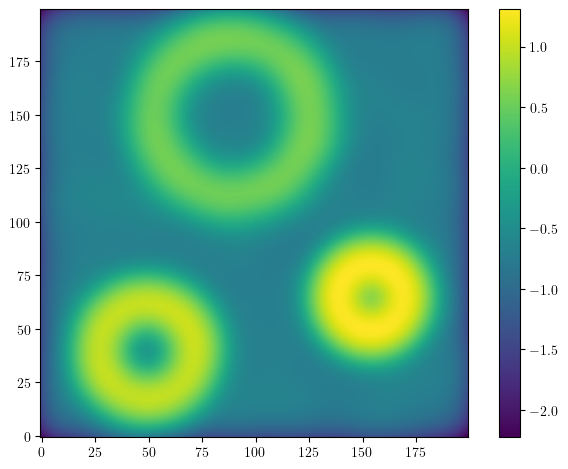

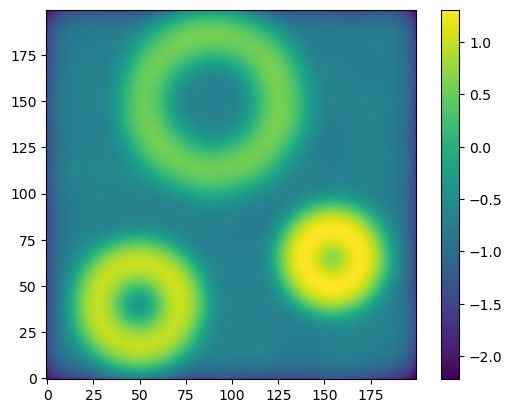

plt.imshow(density, origin="lower")
plt.colorbar()

<matplotlib.colorbar.Colorbar at 0x7f3c9f1c3da0>

Let say now that we want to recover the \(x\) scale of the time of appearance of the topological features, as well as their concentration, given by a density map \(f\).

We build the following filtration: a given pixel \(p\in \mathbb R^2\) in the image will appear in the filtration at coordinates \((x,y)\) if

• \(p_1\le x\) (\(x\) coordinate), and

• \(f(p) \ge y\) (the pixel is dense enough).

In multipers the expected format to encode this filtration is an array of shape \((\mathrm{image\_resolution}\dots ,\mathrm{num\_parameters})\).
In our case, the resolution is [200,200] and we have 2 parameters, so this correspond to the following tensor.

bifiltration = np.empty(shape=(*resolution, 2))
bifiltration[:,:,1] = -density
R = resolution[0]
for i in range(R):
    bifiltration[:,i,0] = i/R

from multipers.filtrations import Cubical
s = Cubical(bifiltration)
# to make the computations faster below, we compute a minimal resolution first.
# This is *not* necessary
s = s.minpres(1, slicer_backend="gudhicohomology")

The python object s now encodes our filtration!

Let us try to recover the rank invariant from this bifiltration.
We will first fix a grid on which to compute it and project our invariant on this grid.

# The smallest grid containing every filtration value of s
full_grid = mp.grids.compute_grid(s)
s = s.grid_squeeze(full_grid)

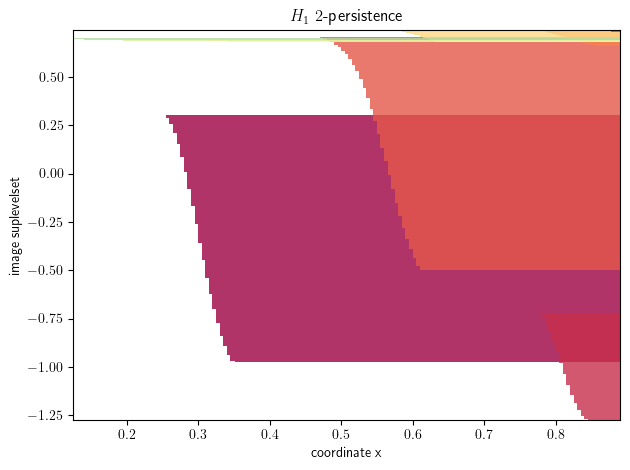

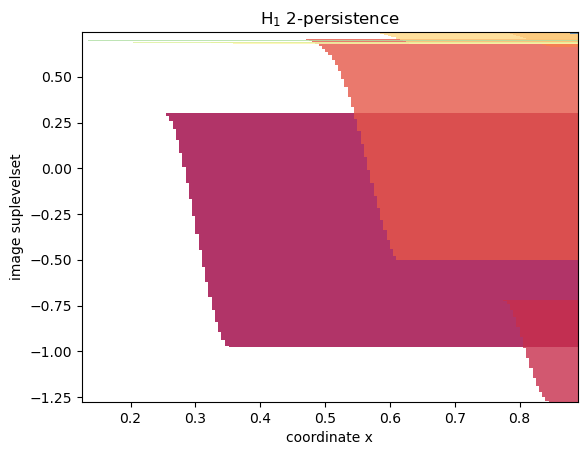

# hilbert decomposition signed measure
hilbert_sm, = mp.signed_measure(s, degree=1, plot=True)
hf = mp.point_measure.integrate_measure(*hilbert_sm, filtration_grid=full_grid)
mp.plots.plot_surface(full_grid,hf, discrete_surface=True)

# rank decomposition signed measure

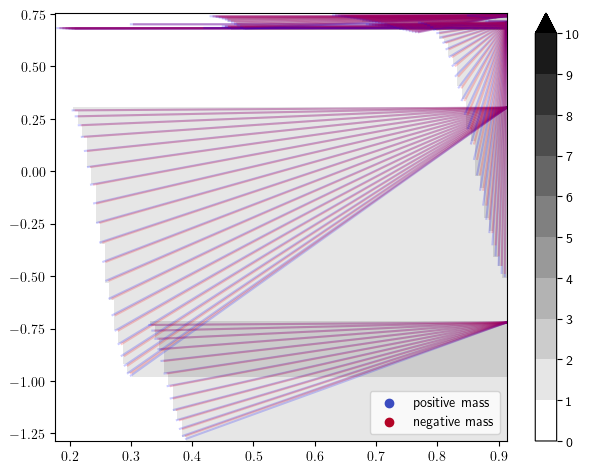

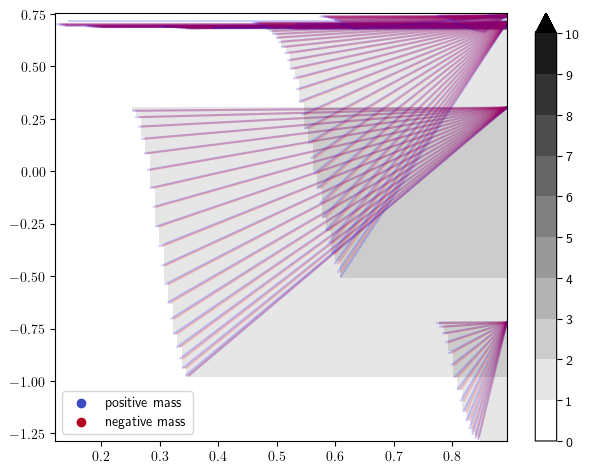

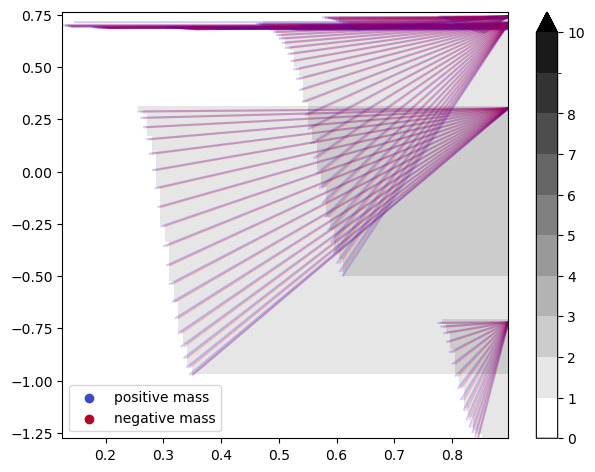

rank_sm, = mp.signed_measure(s,degree= 1, invariant = "rank");
mp.plots.plot_signed_measure(rank_sm, alpha=.2)

We indeed recover the 3 circles with the rank invariant with the 3 significant intervals.

We can also efficiently compute the barcode of line slices with the rank signed measure,
which permits us to do rivet-like visualization from multipers.

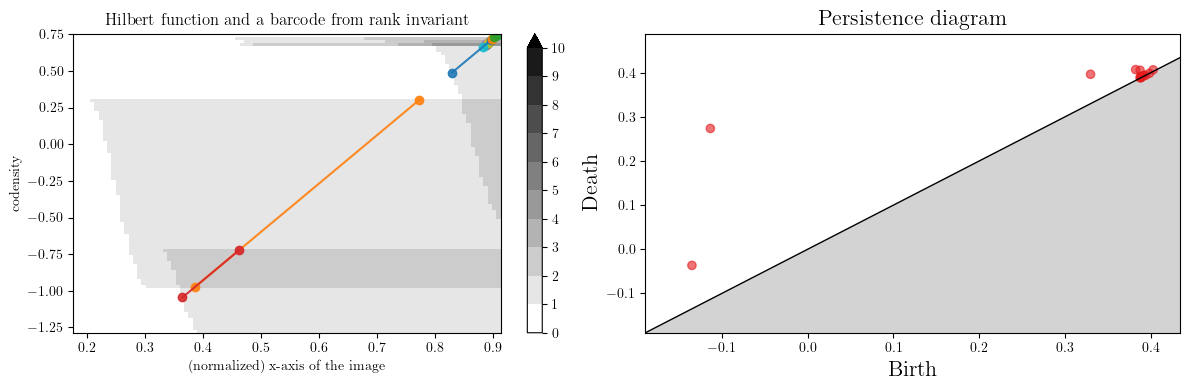

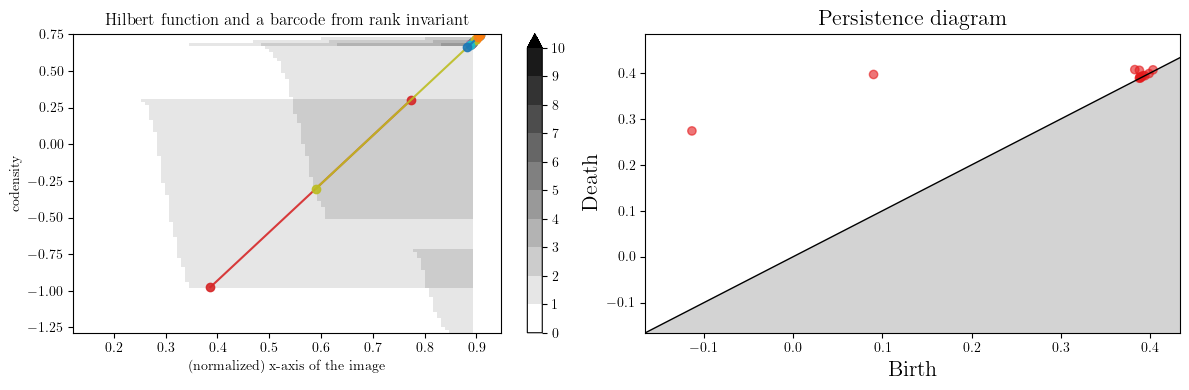

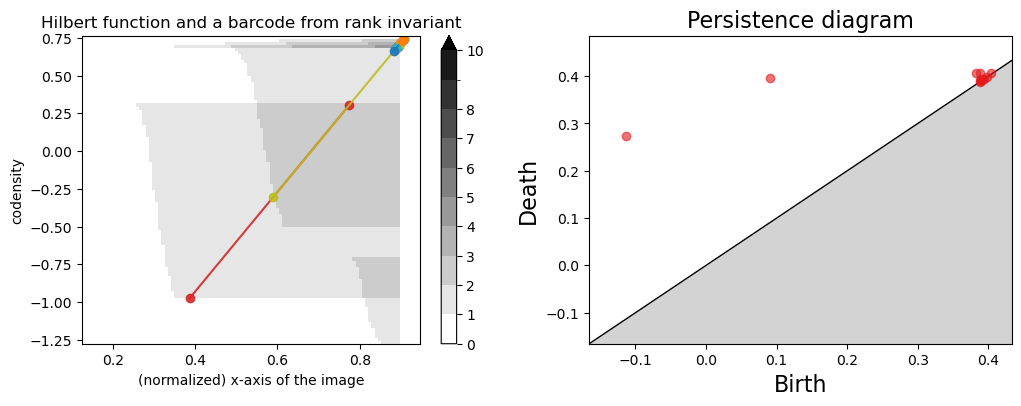

fig, axes = plt.subplots(nrows=1, ncols =2, figsize=(12,4))
plt.sca(axes[0])
mp.plots.plot_surface(full_grid,hf, discrete_surface=True)
basepoint = np.array([.6, 1.5])
direction = np.array([1,2])
barcode = mp.point_measure.barcode_from_rank_sm(
    rank_sm,
    basepoint=basepoint,
    direction=direction
)

for i,bar in enumerate(barcode):
    bar = basepoint + bar[:,None]*direction+i*np.array([0,1])*.02 #small shift for plot
    plt.plot(bar[:,0], bar[:,1], 'o-', alpha=.9)

plt.xlabel("(normalized) x-axis of the image")
plt.ylabel("codensity")
plt.title("Hilbert function and a barcode from rank invariant")
gd.plot_persistence_diagram(barcode, axes=axes[1])

<Axes: title={'center': 'Persistence diagram'}, xlabel='Birth', ylabel='Death'>

You can also directly use rivet to use it interactively, but rivet is significantly slower here.

s can be exported to the firep format:

s.to_scc("stuff.firep", rivet_compatible=True)

Which can then easily be imported to rivet.
